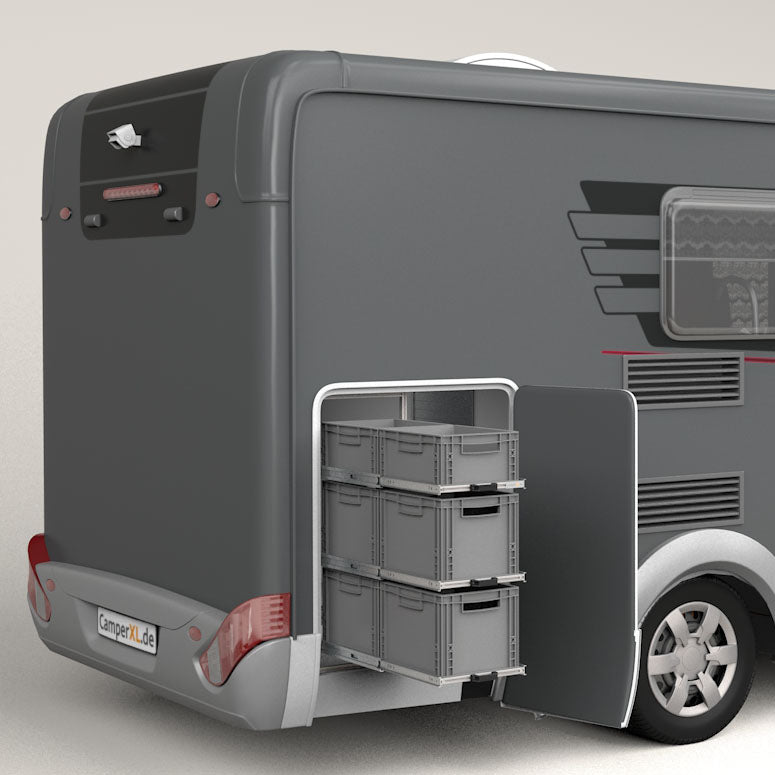

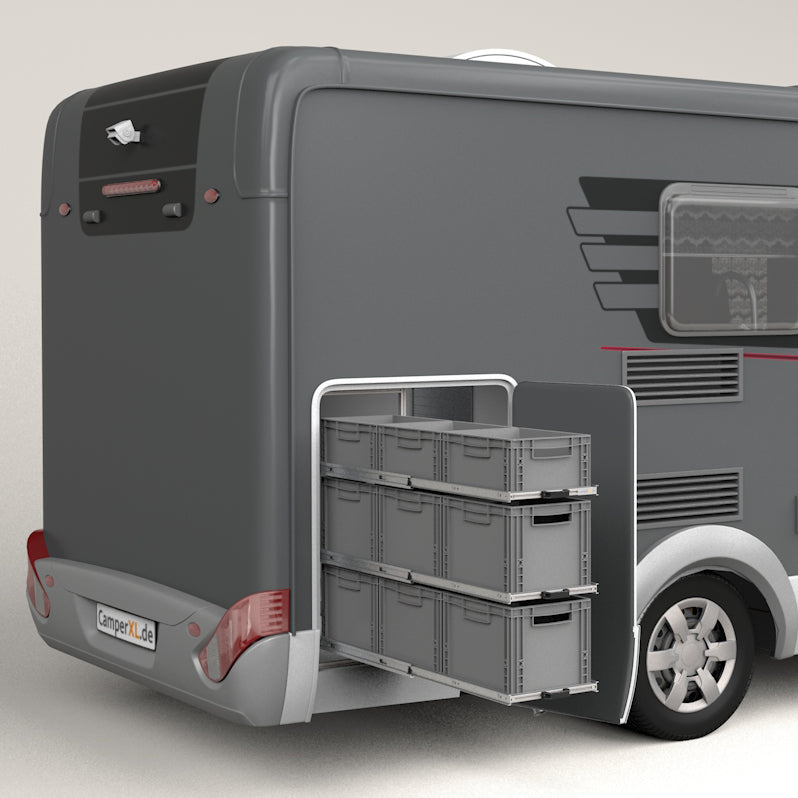

Pull-out shelf for motorhome rear garage
Tax included. Shipping calculated at checkout
Dimensions for your vehicle (optional)
If you don't have the data at hand right now, you can leave the fields empty for now. We will get in touch with you. No shelf leaves our facility without your measurements and a verified sketch.
Motorhome shelf made from 20×20 mm aluminum construction profile
This high-quality motorhome shelf is made from sturdy 20×20 mm aluminum profiles and is ideal for installation in the rear garage of motorhomes.
Flexible shelf configuration
- Euro boxes not included -
All shelves are fully extendable, secured with a rotary latch, and equipped with a handle. Four adjustable feet are mounted at the top of the vertical supports.
Custom fit for your rear garage
For the production of your motorhome shelf, we need:
- The internal height of your rear garage
- The upper and lower loading edge
The shelf is made 5 mm lower than the internal height. The remaining gap is compensated by the adjustable feet.
The shelf heights are optimized for boxes with a height of 320 mm. If the internal height does not allow a 320 mm box on every shelf, the top shelf will be made accordingly lower. The bottom shelf will use the remaining space.
You will receive a layout sketch in advance, which can of course be adjusted to your requirements.
Further information
If you have any questions, we are happy to help by phone or message. Our assembly video explains the assembly and installation step by step.
